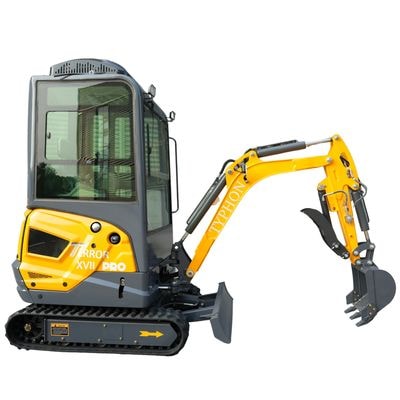

Bring dependable digging power and year-round comfort to demanding jobs with the yellow TYPHON TERROR XVII PRO Prestige Edition. This 4,000 lb enclosed mini excavator combines proven Kubota diesel performance, refined hydraulic control and a protected operator environment in a compact, work-ready package.

Reliable Kubota Diesel Performance

The EPA-certified Kubota D902 is a Japanese-built vertical three-cylinder, four-cycle diesel engine engineered for smooth output, efficient fuel use and long service life. It produces 15.8 HP at 2,200 RPM and reaches up to 20.4 HP at 3,600 RPM.

Precise Hydraulic Control

An 18 MPa hydraulic system, 1.82 GPM pilot flow and 6.07 GPM main flow provide controlled, responsive operation for digging, grading, loading and attachment work. Dual auxiliary hydraulic circuits, a hydraulic oil cooler and protected hoses help support reliable operation through extended work cycles.

Versatile Digging and Positioning

The boom swings approximately 45 degrees left and 55 degrees right, while the upper structure rotates continuously through 360 degrees. A 14 kN breakout force, 86.50-inch maximum digging depth and 16.54-inch bucket give the machine the capability to tackle trenches, landscaping, site preparation and property-maintenance projects.

Comfortable Enclosed Cab

Air conditioning and heat help keep the operator productive in changing weather. The ergonomic seat, headrest, armrests and practical cabin layout reduce fatigue during longer shifts. The modern yellow finish gives this Prestige Edition a highly visible, professional jobsite presence.

• Hydraulic thumb clip and standard dozer blade
• 9.06-inch rubber tracks for traction and stability
• 4.76-gallon hydraulic reservoir and 3.17-gallon fuel tank
• Armored hydraulic hoses and shielded control valves
