TYPHON TERROR III PROPACT packages Kubota D1105 diesel power, retractable rubber tracks, zero-tail-swing maneuverability and an offset boom into a modern working platform for narrow-access excavation, utilities, foundation trenches, backfilling and site preparation.

The machine is designed around both production and the person operating it, so the integrated dozer blade and enclosed AC/heater cab add grading capability and all-season operator comfort.

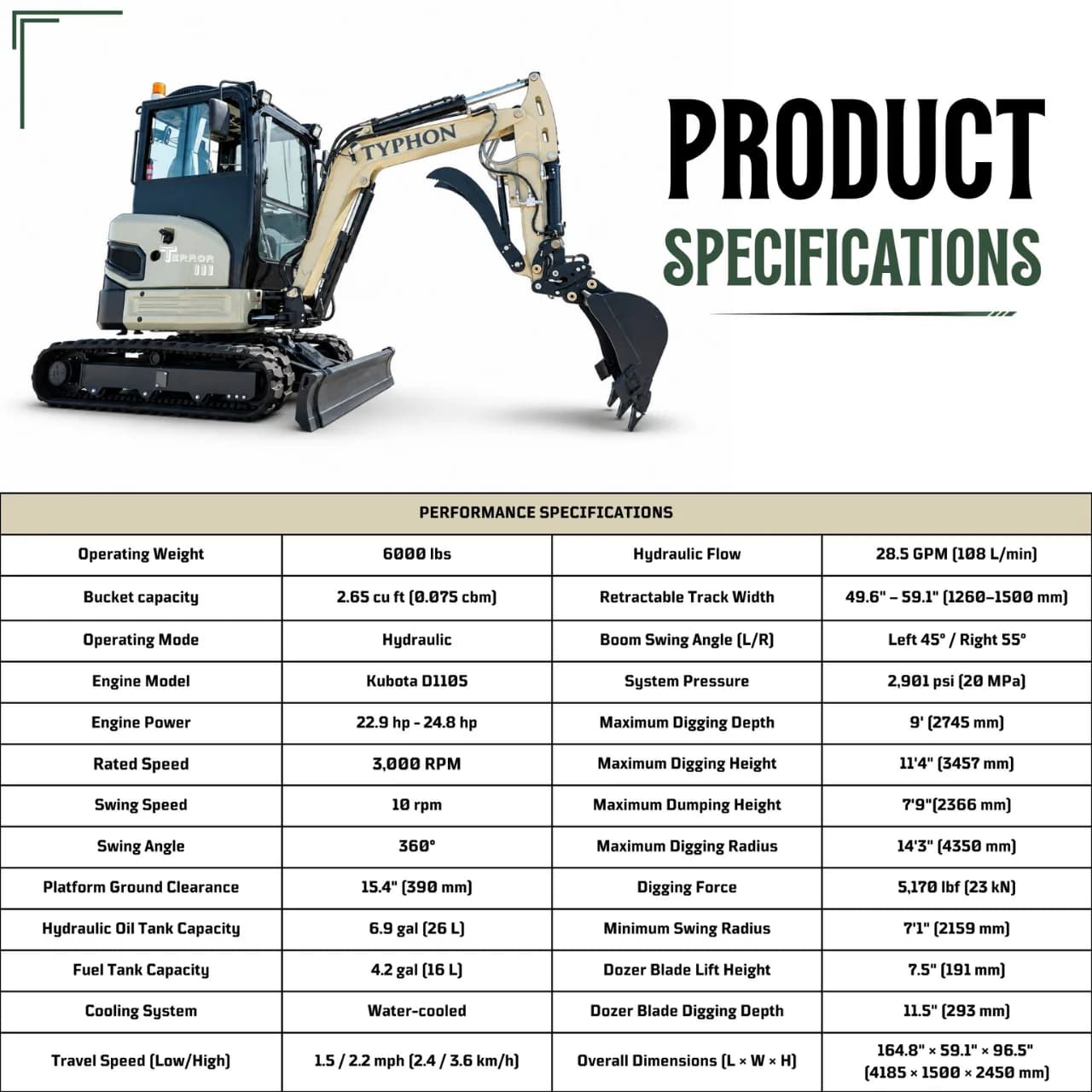

System & Performance Details

• Power unit: Kubota D1105 diesel power from a 3-cylinder water-cooled engine; published output range 22.9–24.8 HP
• Digging range: 9 ft digging depth, 14 ft 3 in radius, 11 ft 4 in maximum dig height and 23 kN bucket force
• Retractable tracks: track width that changes between 49.6 in for access and 59.1 in for a wider stance
• Hydraulic control: full hydraulic operation managed through a piston pump and load-sensing valve
• Swing & boom offset: zero-tail-swing design, 360° rotation at 10 rpm and 45° left / 55° right boom swing
• Travel speeds: dual travel settings of 2.4 km/h low and 3.6 km/h high
• Tank capacities: 4.2 gal of fuel capacity and a 6.9 gal hydraulic reservoir
• Dozer blade: 7.5 in upward and 11.5 in downward blade travel
• Cab & safety: climate-controlled enclosed cab with mirrors, opening side glass, speaker and emergency equipment
• Operating weight: 6,000 lb machine operating mass

Working Advantage

Its specification set supports a clean workflow, adaptable operation and professional day-to-day use. Its combination of Kubota D1105 diesel power, retractable rubber tracks, zero-tail-swing maneuverability and an offset boom is matched to narrow-access excavation, utilities, foundation trenches, backfilling and site preparation, while the integrated dozer blade and enclosed AC/heater cab add grading capability and all-season operator comfort.
