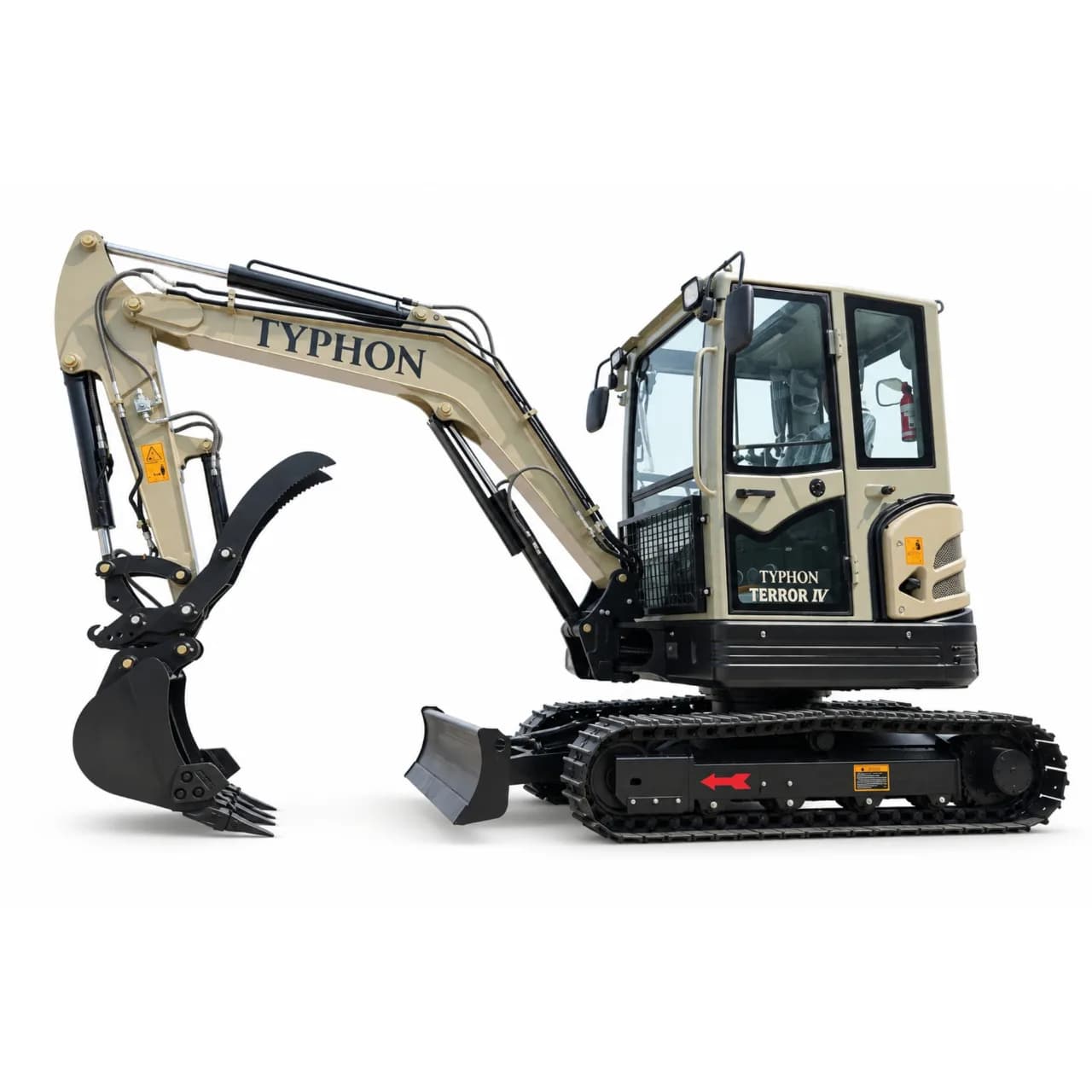

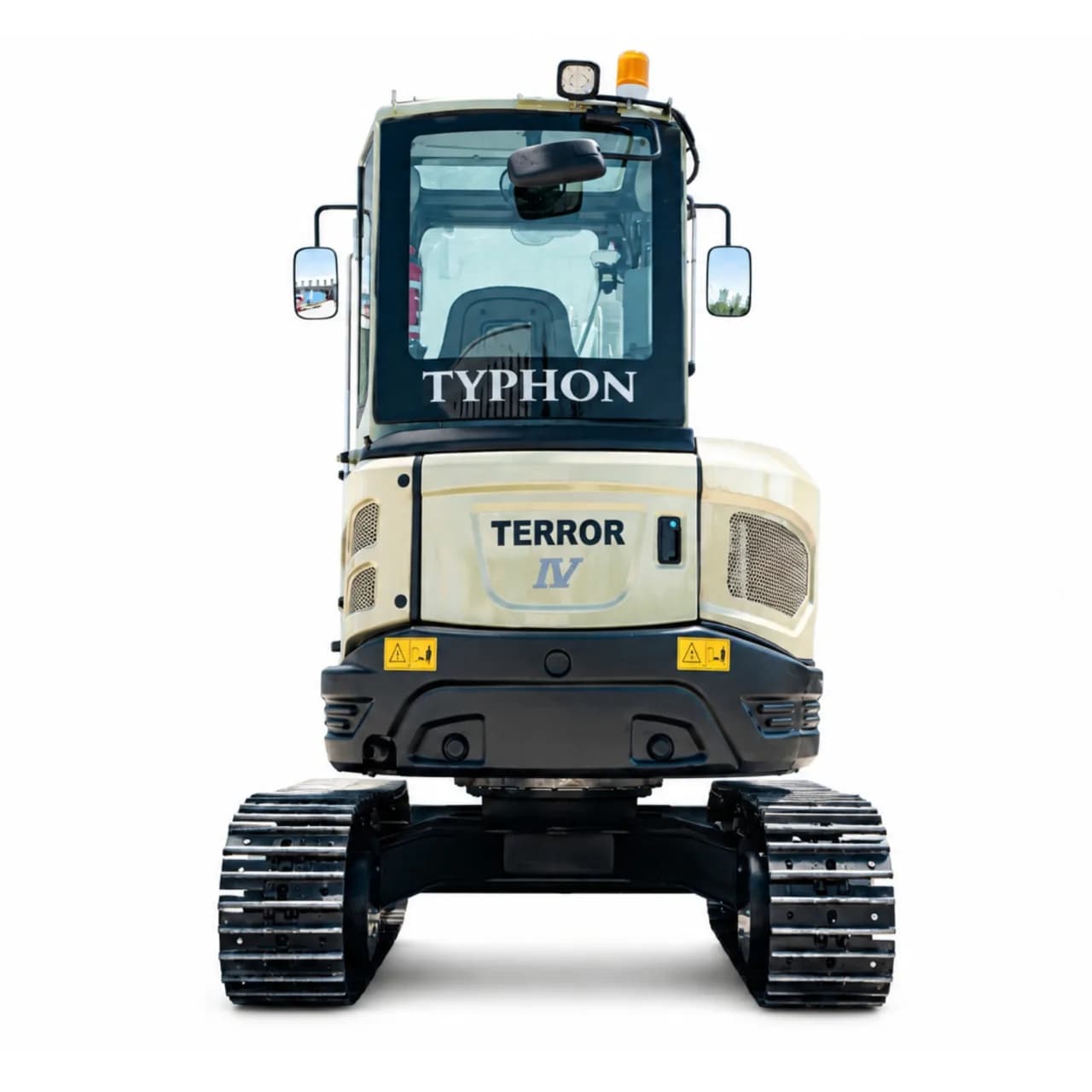

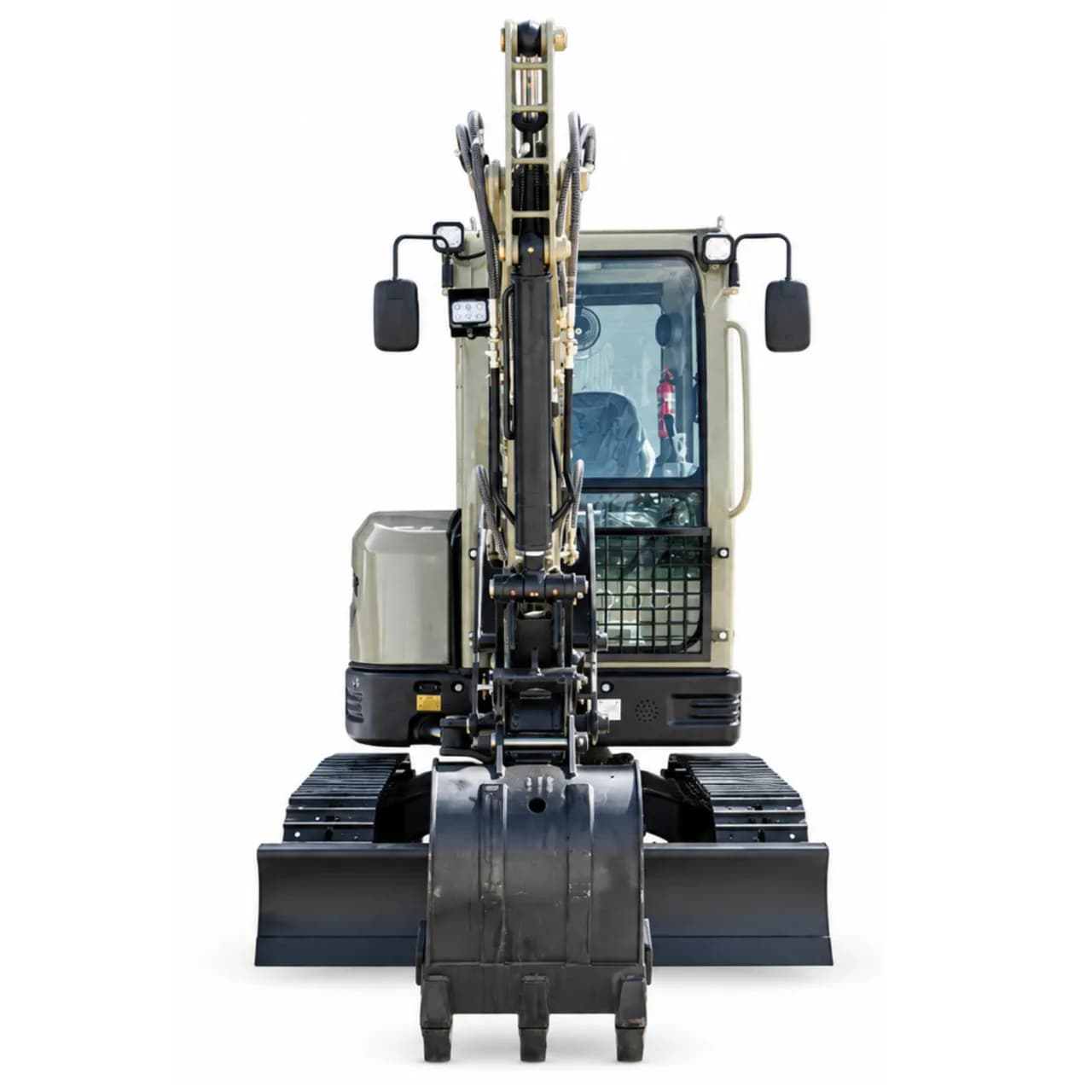

TYPHON TERROR IV PROPACT packages Kubota D1703 diesel power, zero-tail-swing geometry, metal tracks and load-sensing hydraulics into a modern working platform for utility excavation, foundation work, trenching, grading and material handling in restricted jobsites.

The machine is designed around both production and the person operating it, so an enclosed climate-controlled cab and pilot controls support accurate work through long shifts.

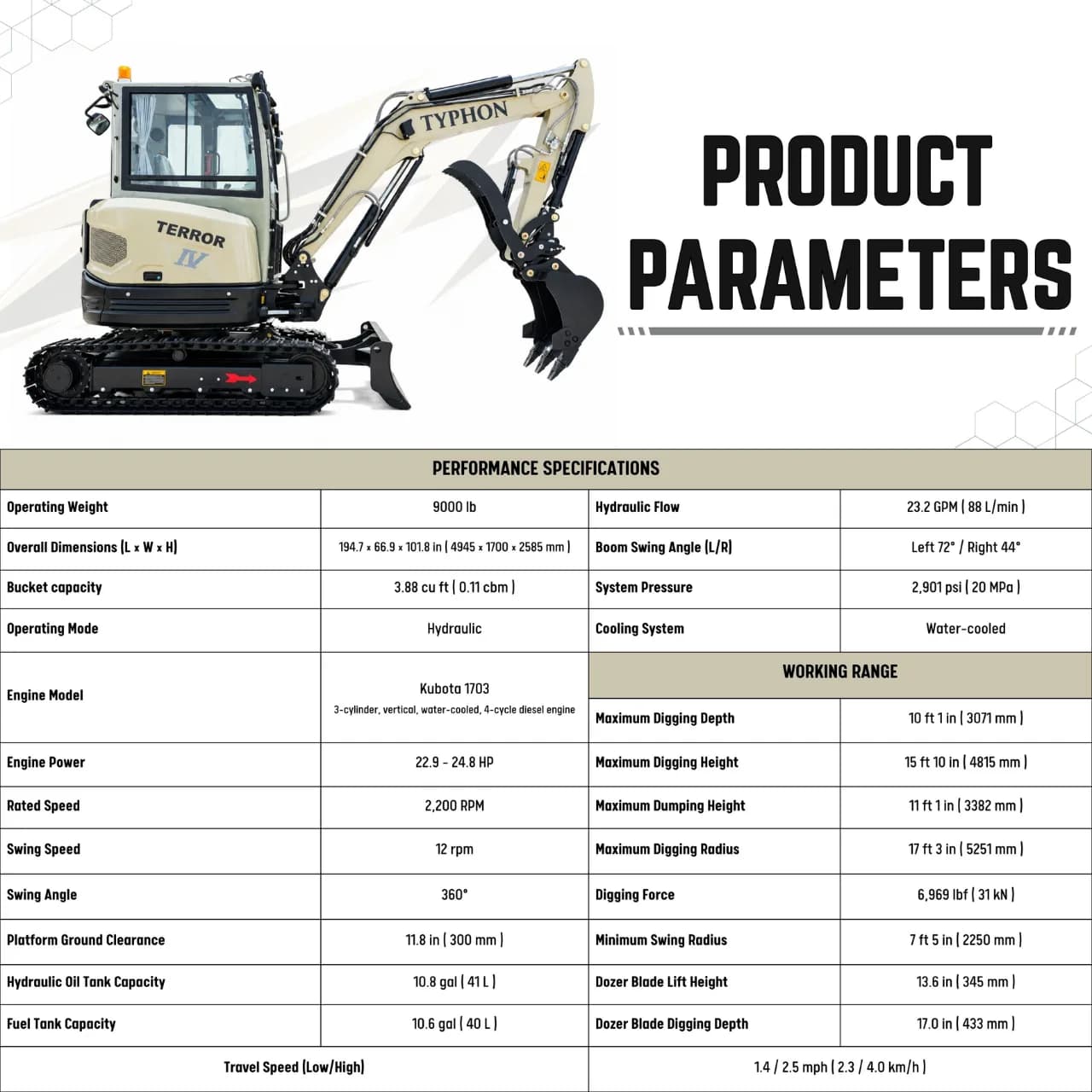

System & Performance Details

• Power unit: Kubota D1703 diesel power from a 3-cylinder engine; published output range 22.9–24.8 HP
• Digging capability: 10 ft 1 in maximum digging depth, 17 ft 3 in digging radius and 31 kN digging force
• Overall size: overall dimensions of 194.7 in long × 66.9 in wide × 101.8 in high
• Hydraulic system: load-sensing hydraulic control supplied by a piston pump with flow up to 23.2 GPM
• Swing system: zero-tail-swing layout, continuous 360° rotation and 72° left / 44° right boom swing
• Travel system: metal-track travel with selectable 1.4 mph low and 2.5 mph high speeds
• Fluid capacity: 10.6 gallons of fuel storage and 10.8 gallons of hydraulic-oil capacity
• Operator environment: enclosed AC/heater cab, pilot joysticks, digital LCD, speaker/media controls and LED lighting
• Included equipment: a digging bucket, hydraulic thumb clip, toolbox and digital manual supplied with the machine
• Operating weight: 9,000 lb machine operating mass

Working Advantage

Its specification set supports a clean workflow, adaptable operation and professional day-to-day use. Its combination of Kubota D1703 diesel power, zero-tail-swing geometry, metal tracks and load-sensing hydraulics is matched to utility excavation, foundation work, trenching, grading and material handling in restricted jobsites, while an enclosed climate-controlled cab and pilot controls support accurate work through long shifts.
