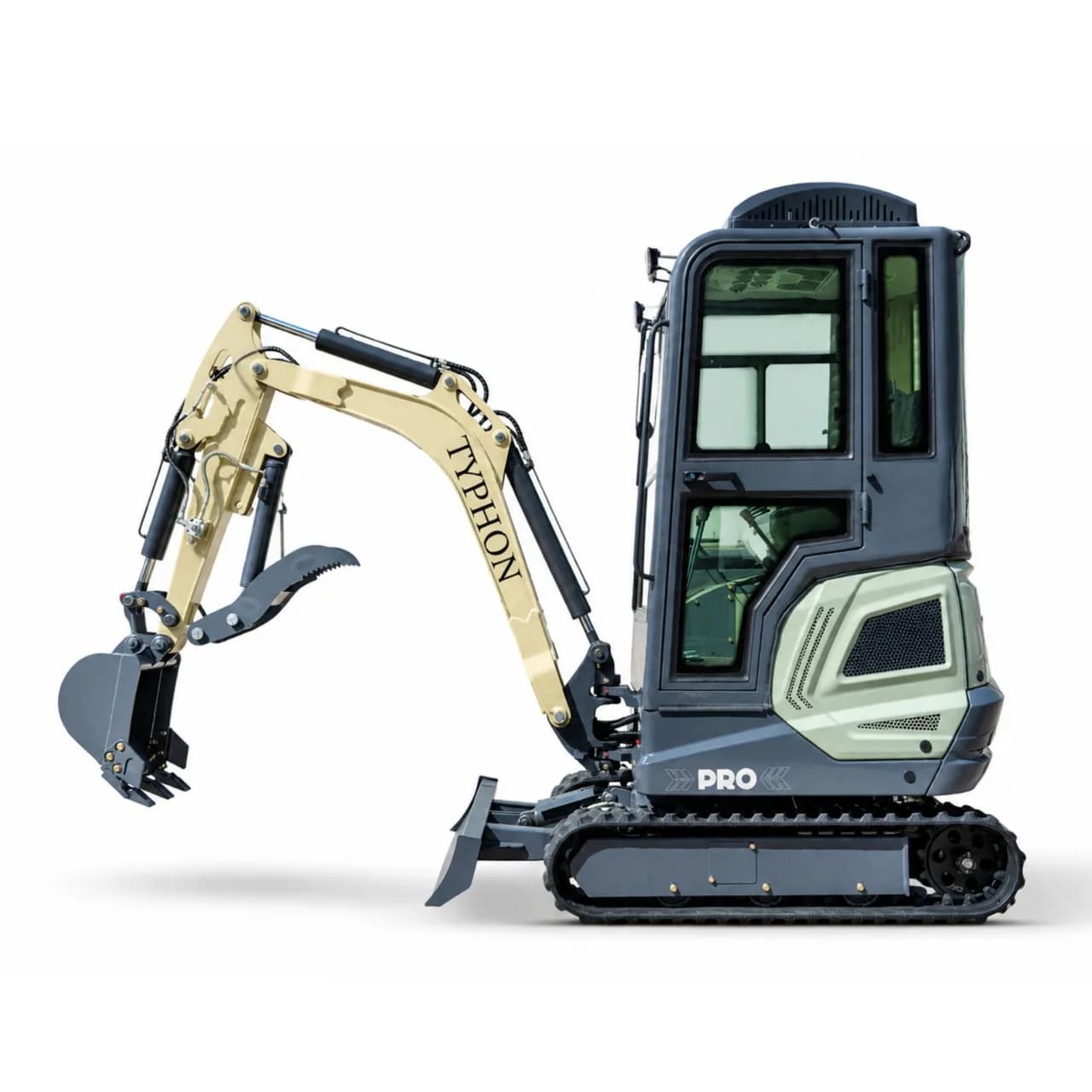

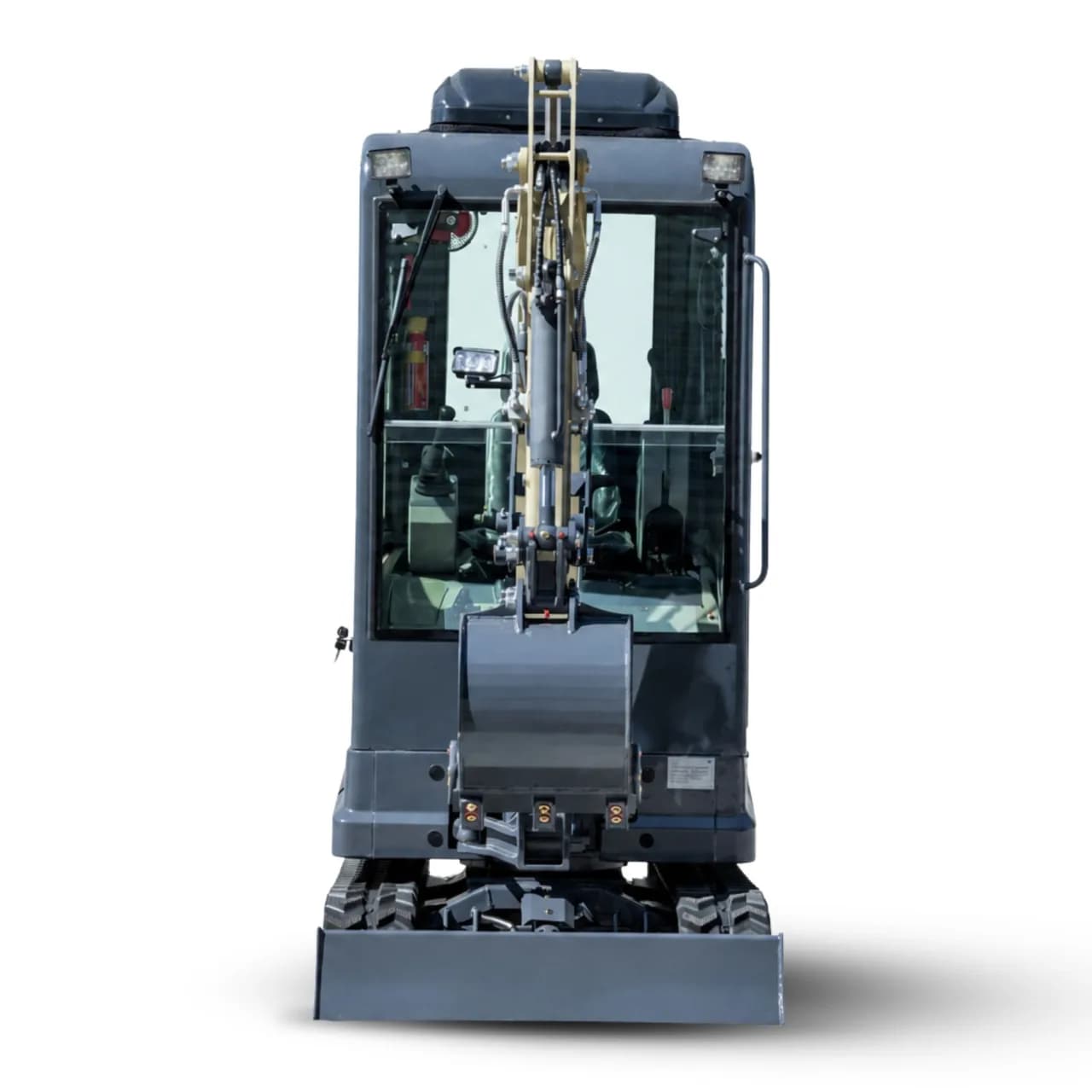

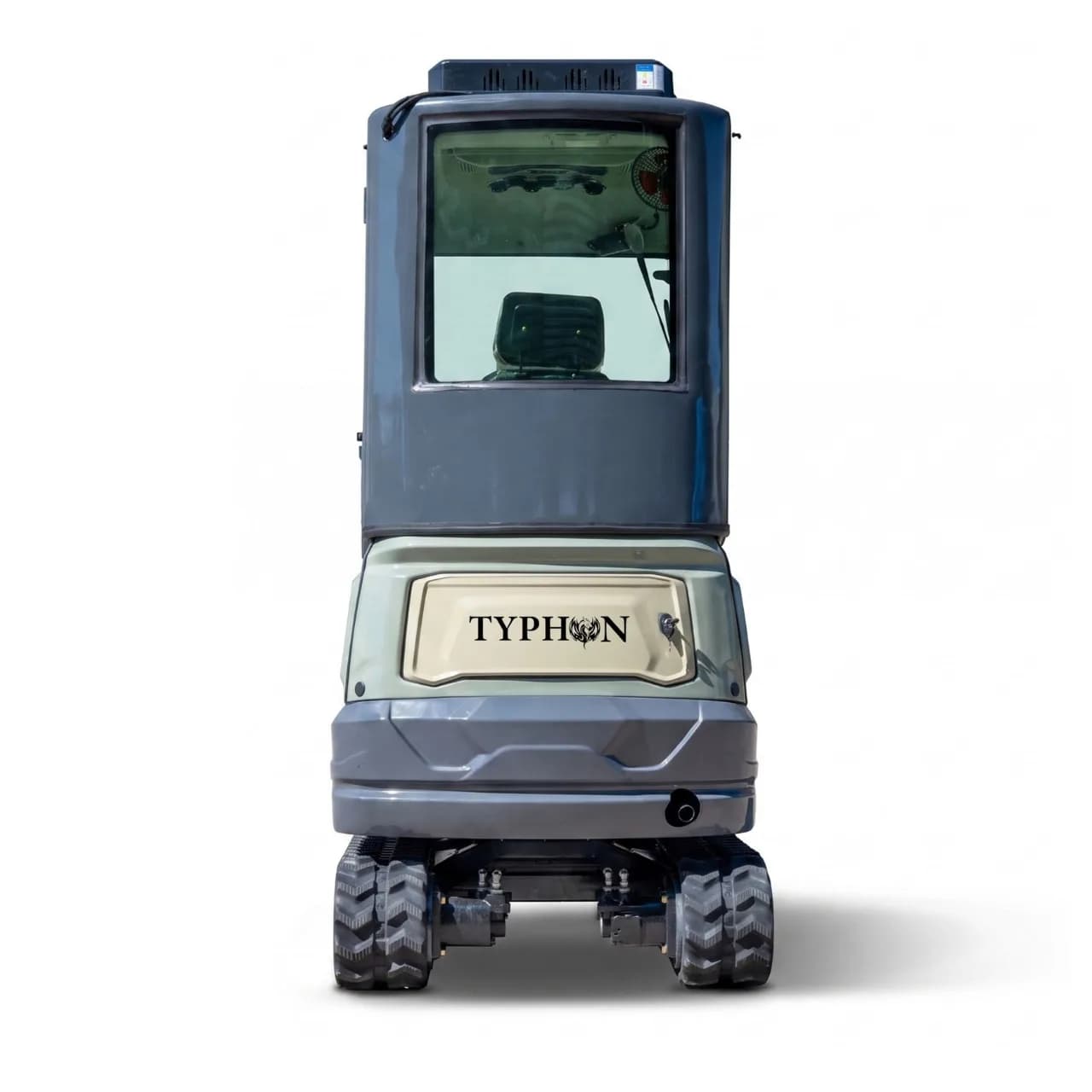

TYPHON TERROR XVII PRO Prestige packages Kubota D902 diesel power, offset-boom flexibility, dual auxiliary hydraulics and an included hydraulic thumb into a modern working platform for trenching, landscaping, utilities, property work and material handling in compact access areas.

The machine is designed around both production and the person operating it, so the fully enclosed AC/heater cab combines compact maneuverability with a more comfortable professional operator station.

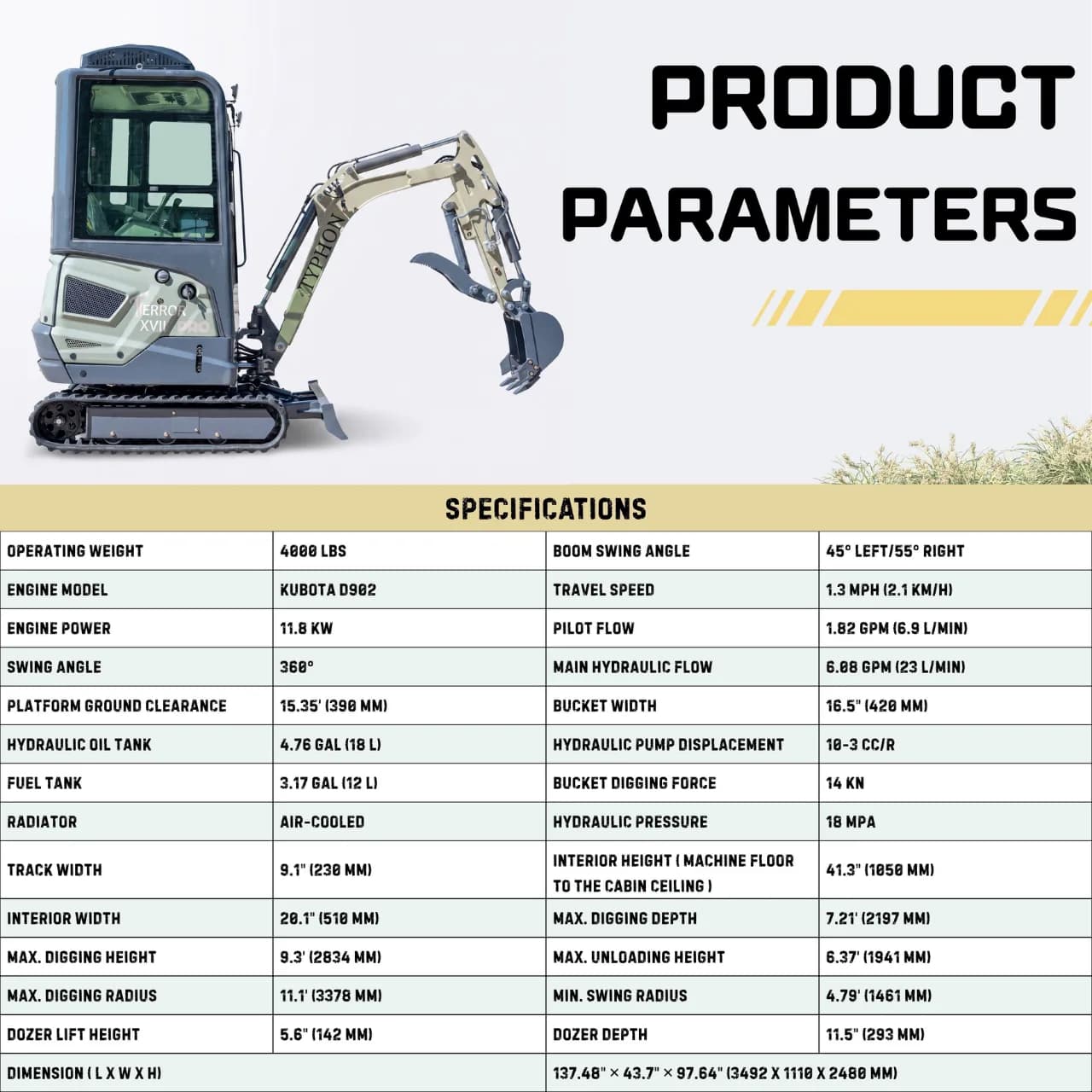

System & Performance Details

• Power unit: Kubota D902 diesel power with 3 cylinders, rated 15.8 HP at 2,200 RPM and up to 20.4 HP at 3,600 RPM
• Digging performance: 86.5 in maximum digging depth and 14 kN breakout force
• Bucket & thumb: a 16.54 in-wide, 1.41 ft³ bucket paired with the included hydraulic thumb
• Hydraulics: dual auxiliary hydraulics supported by up to 2,610 PSI, 6.08 GPM main flow and 1.82 GPM pilot flow
• Swing & offset: 360° upper rotation, 45°/55° offset boom and 57.5 in minimum swing radius
• Dimensions & tracks: overall dimensions of 137.48 in long × 43.7 in wide × 97.64 in high and 9.1 in rubber tracks
• Travel & fuel: 1.3 mph machine travel supported by 3.17 gal of fuel capacity
• Operator station: fully enclosed AC/heater cab, pilot controls and 20.1 in interior width
• Included equipment: an included hydraulic thumb for gripping and positioning materials
• Operating weight: 4,000 lb machine operating mass

Working Advantage

Its specification set supports a clean workflow, adaptable operation and professional day-to-day use. Its combination of Kubota D902 diesel power, offset-boom flexibility, dual auxiliary hydraulics and an included hydraulic thumb is matched to trenching, landscaping, utilities, property work and material handling in compact access areas, while the fully enclosed AC/heater cab combines compact maneuverability with a more comfortable professional operator station.
