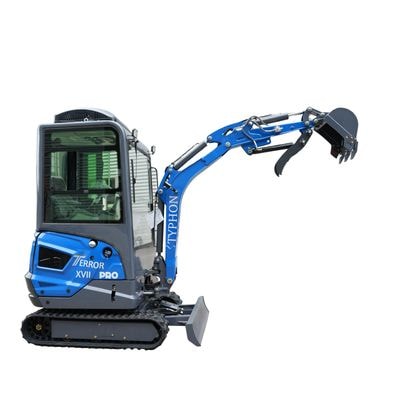

Work comfortably without giving up excavation performance in the blue TYPHON TERROR XVII PRO Prestige Edition. This 4,000 lb enclosed mini excavator blends reliable Kubota diesel power, responsive hydraulics and a carefully designed climate-controlled cab for productive operation across every season.

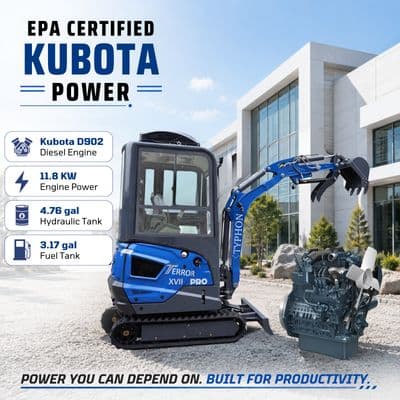

Efficient Kubota D902 Engine

The EPA-certified Kubota D902 is a compact vertical three-cylinder, four-cycle diesel engine known for smooth power delivery and durable operation. Output is rated at 15.8 HP at 2,200 RPM and rises to 20.4 HP at 3,600 RPM.

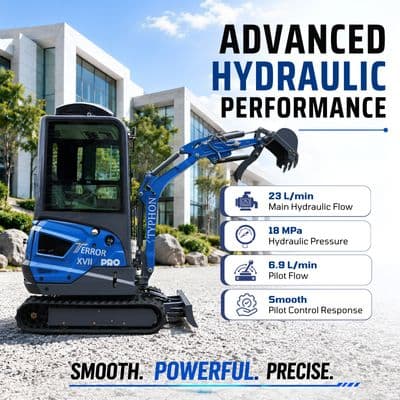

Smooth, Adaptable Hydraulics

With an 18 MPa working pressure, 1.82 GPM pilot flow and 6.07 GPM main flow, the system provides precise control for digging, grading and material handling. Dual auxiliary connections support powered attachments, while the oil cooler and protected hydraulic components help maintain reliable performance during long work periods.

Compact Maneuverability with Strong Digging Force

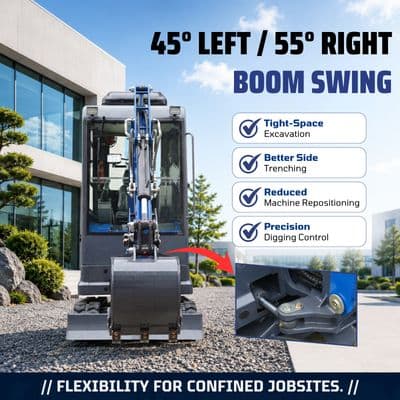

The upper structure provides continuous 360-degree rotation. The offset boom moves approximately 45 degrees left and 55 degrees right, helping the operator reach around obstacles and work close to structures. A 14 kN breakout force, 86.50-inch maximum digging depth and included hydraulic thumb make the machine useful for soil, roots, debris and loose material.

Designed Around the Operator

The fully enclosed cab uses air conditioning and heat to provide a more controlled working environment. Ergonomic seating with a headrest and armrests supports the operator during extended shifts, while the roomy interior improves movement and visibility. A clean blue exterior gives the machine a modern, understated appearance.

• Standard dozer blade and 16.54-inch bucket
• 9.06-inch rubber tracks for dependable traction
• 4.76-gallon hydraulic tank and 3.17-gallon diesel tank
• Reinforced hose and valve protection for demanding sites
