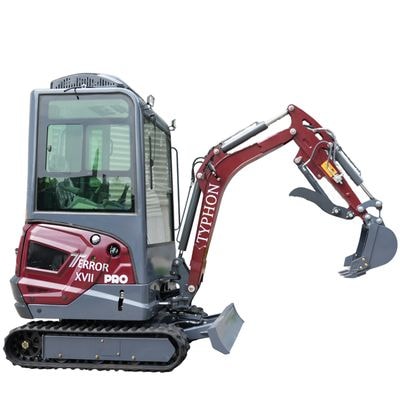

Handle challenging excavation work with the dark cherry TYPHON TERROR XVII PRO Prestige Edition. Designed around a stable 4,000 lb operating platform, this enclosed mini excavator delivers the power, hydraulic precision and operator protection required for construction, landscaping and material-handling tasks.

Proven Kubota Power

At the heart of the machine is the EPA-certified Kubota D902 three-cylinder diesel engine. It supplies 15.8 HP at 2,200 RPM and up to 20.4 HP at 3,600 RPM, combining dependable output with efficient operation and straightforward serviceability.

Professional Hydraulic Capability

The hydraulic system operates at 18 MPa, equivalent to approximately 2,610.68 PSI. A 1.82 GPM pilot circuit supports accurate control inputs, while the 6.07 GPM main hydraulic flow helps provide smooth rotation and efficient attachment response. Two auxiliary circuits expand compatibility with powered tools and the included hydraulic thumb.

Built for Confined and Open Jobsites

Continuous 360-degree rotation and a boom swing of approximately 45 degrees left and 55 degrees right make it easier to work beside foundations, fences, walls and other obstacles. Wide rubber tracks improve stability on soft or uneven ground, while a travel speed of up to 1.30 MPH supports controlled movement around the site.

Digging Strength and Premium Comfort

A 14 kN breakout force, 86.50-inch digging depth, 16.54-inch bucket and standard dozer blade create a versatile setup for trenching, grading, clearing and loading. Inside, the sealed cab includes air conditioning, heat, supportive seating, a headrest and armrests. The dark cherry exterior gives this Prestige Edition a distinctive, professional appearance.

• Hydraulic thumb clip included
• Hydraulic oil cooler for extended operation
• Armored hoses and protected hydraulic valves
• Conveniently grouped fuel and hydraulic service points
