TYPHON STOMP 65 PROPACT Tracked packages 74 HP Cummins QSF2.8 diesel power, Italian PWG hydraulics, triangle tracks and a 2,400 lb rated load into a modern working platform for construction, landscaping, agriculture, material loading and demanding hydraulic-attachment work.

The machine is designed around both production and the person operating it, so automatic load leveling and the enclosed AC/heater cab help maintain productive, controlled operation on long workdays.

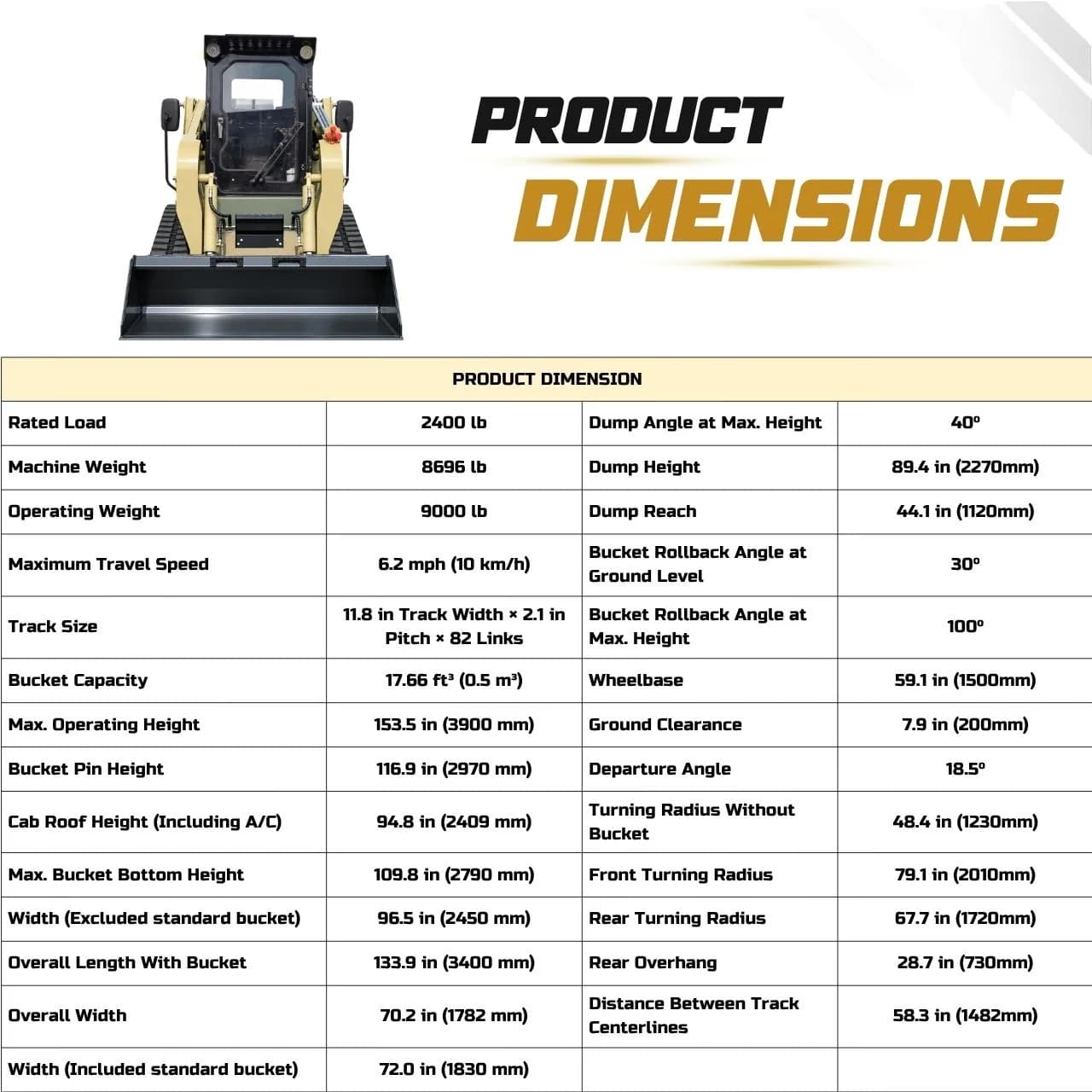

System & Performance Details

• Power unit: Cummins QSF2.8 turbo-diesel power: 4 cylinders and 74 HP at 2,500 RPM
• Main hydraulics: Italian PWG axial-piston hydraulics delivering up to 31.7 GPM at 3,626 PSI
• Auxiliary flow: attachment hydraulics rated up to 23.5 GPM and 3,046 PSI
• Bucket & leveling: 17.66 cubic feet of bucket capacity plus automatic load-level control
• Lift geometry: 153.5 in maximum operating height, 89.4 in dump height and 40° maximum dump angle
• Track platform: a 70.2 in-wide triangle-track platform with true 360° zero-turn movement
• Travel & fuel: 6.2 mph maximum travel speed backed by a 19.8 gallon fuel tank
• Hydraulic protection: multi-layer oil filtration and dual-layer high-pressure hydraulic hoses
• Operator cab: a climate-controlled cab featuring pilot controls, LED lighting, opening windows and emergency provisions
• Weight & rated load: 9,000 lb operating mass and 2,400 lb rated loading capability

Working Advantage

Its specification set supports a clean workflow, adaptable operation and professional day-to-day use. Its combination of 74 HP Cummins QSF2.8 diesel power, Italian PWG hydraulics, triangle tracks and a 2,400 lb rated load is matched to construction, landscaping, agriculture, material loading and demanding hydraulic-attachment work, while automatic load leveling and the enclosed AC/heater cab help maintain productive, controlled operation on long workdays.
