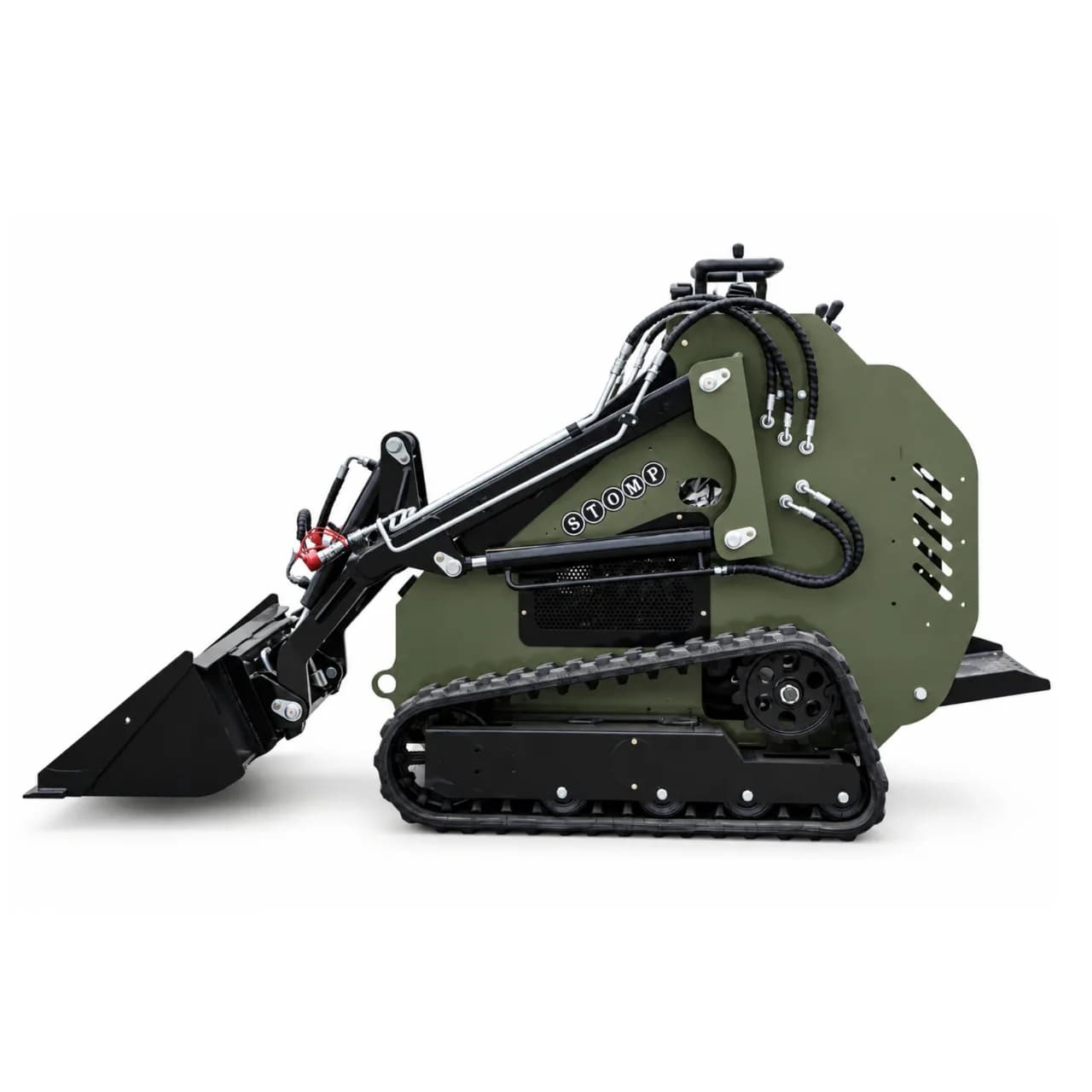

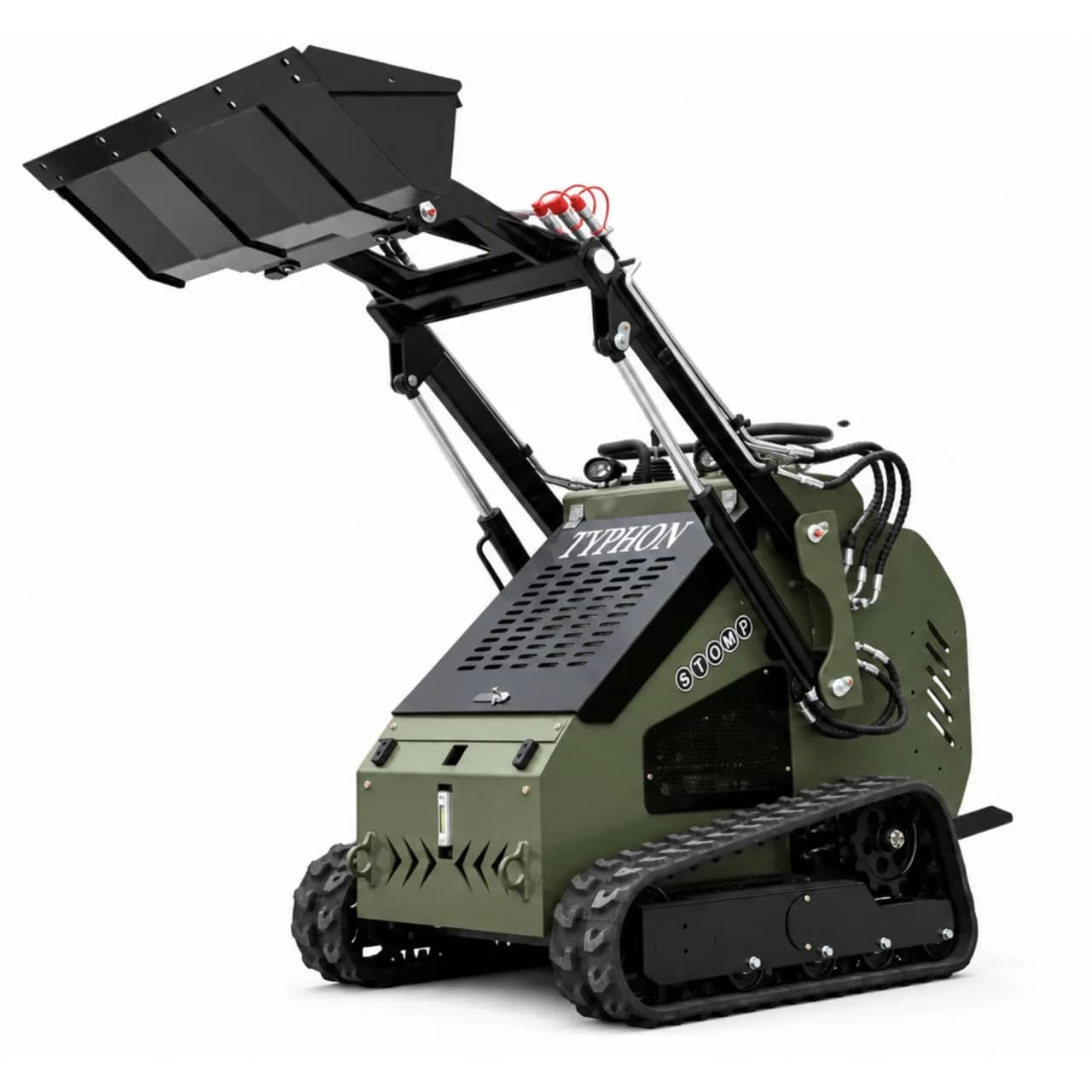

TYPHON STOMP 502 PRO packages Honda GX690 V-Twin power, a three-pump hydraulic package, triangle rubber tracks and a 40.7 in overall width into a modern working platform for landscaping, residential construction, property maintenance and material handling through narrow access points.

The machine is designed around both production and the person operating it, so dual joysticks and a stand-on platform provide direct control and visibility while supporting compatible hydraulic attachments.

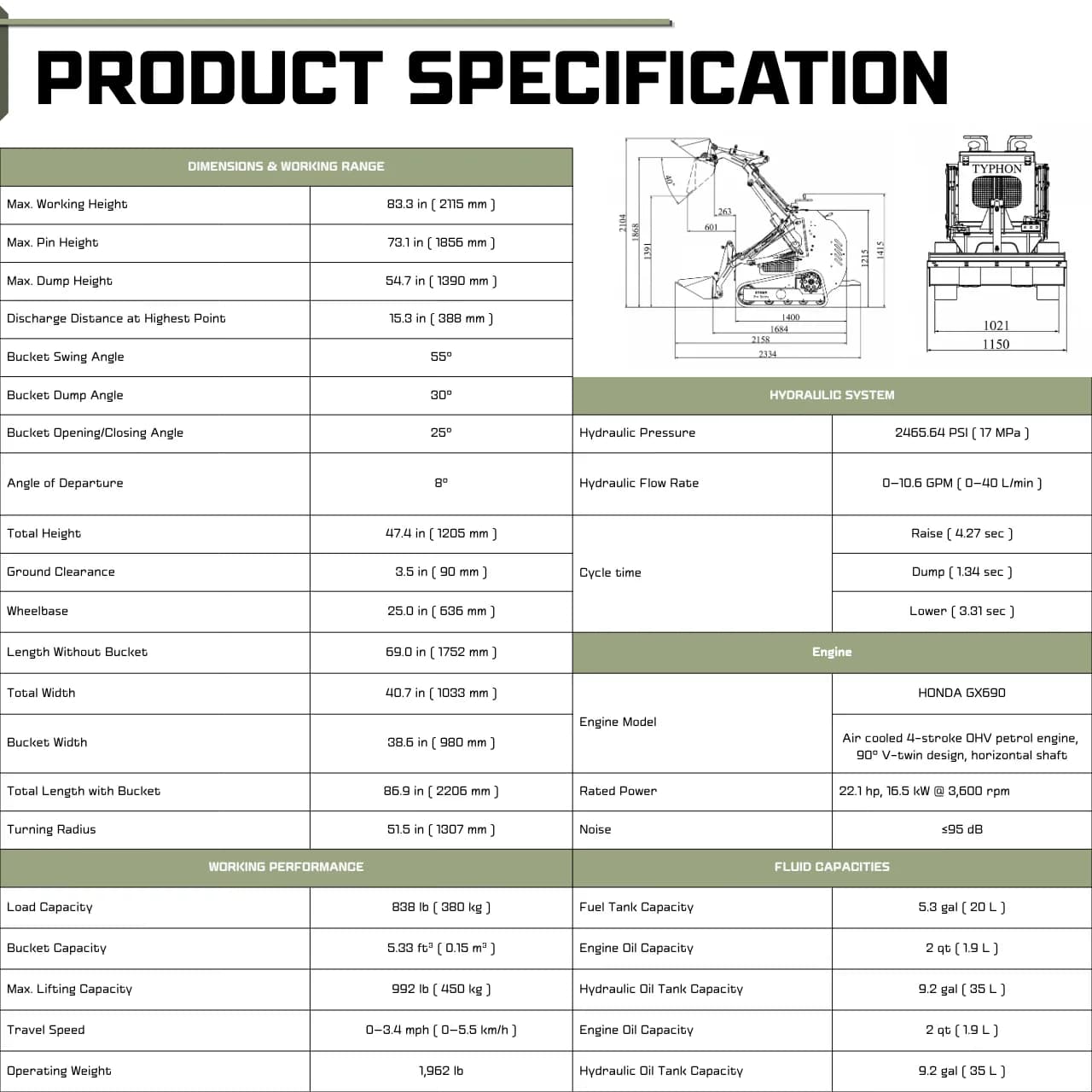

System & Performance Details

• Travel speed: a maximum travel speed of 3.4 mph
• Tank capacities: 5.33 gal fuel capacity and 9.2 gal hydraulic-oil capacity
• Operator controls: dual-joystick control from the stand-on platform, supported by a digital display and front LEDs
• Attachment support: a hydraulic system prepared for compatible attachment work including trenchers, augers and grapples
• Weight & capacity: 1,962 lb operating weight, 838 lb operating load and 992 lb maximum lifting force

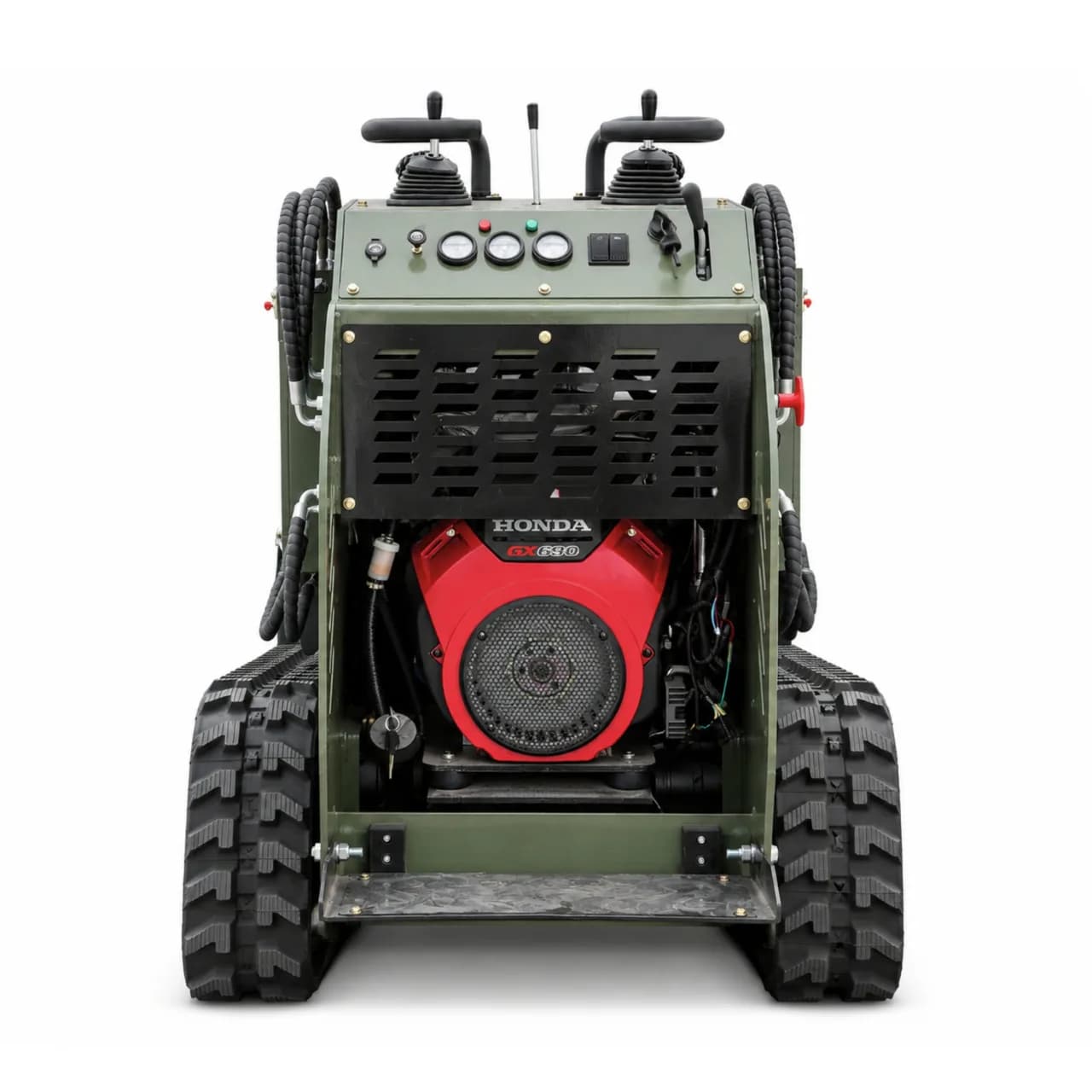

• Power unit: a 22.1 HP Honda GX690 air-cooled V-Twin gasoline engine rated at 3,600 RPM
• Hydraulic system: 10.6 GPM hydraulic output from a 3-pump / 3-valve package operating to 2,465.64 PSI
• Bucket: 5.33 ft³ bucket capacity
• Lift geometry: working geometry reaching 83.3 in high with a 54.7 in dump height
• Narrow-access size: 40.7 in machine width for moving through restricted entrances
• Track platform: triangle rubber tracks with 360° pivot steering

Working Advantage

Its specification set supports a clean workflow, adaptable operation and professional day-to-day use. Its combination of Honda GX690 V-Twin power, a three-pump hydraulic package, triangle rubber tracks and a 40.7 in overall width is matched to landscaping, residential construction, property maintenance and material handling through narrow access points, while dual joysticks and a stand-on platform provide direct control and visibility while supporting compatible hydraulic attachments.
