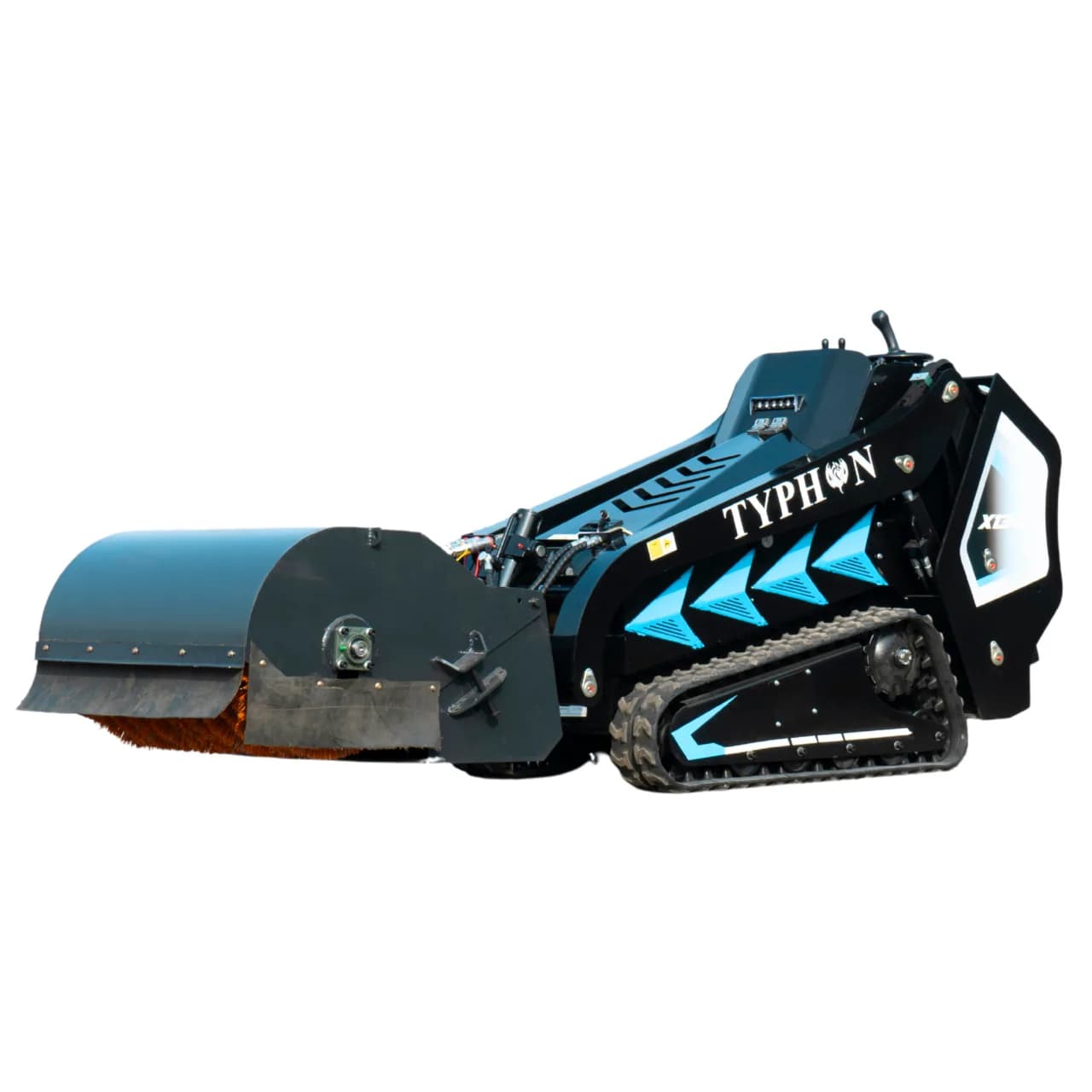

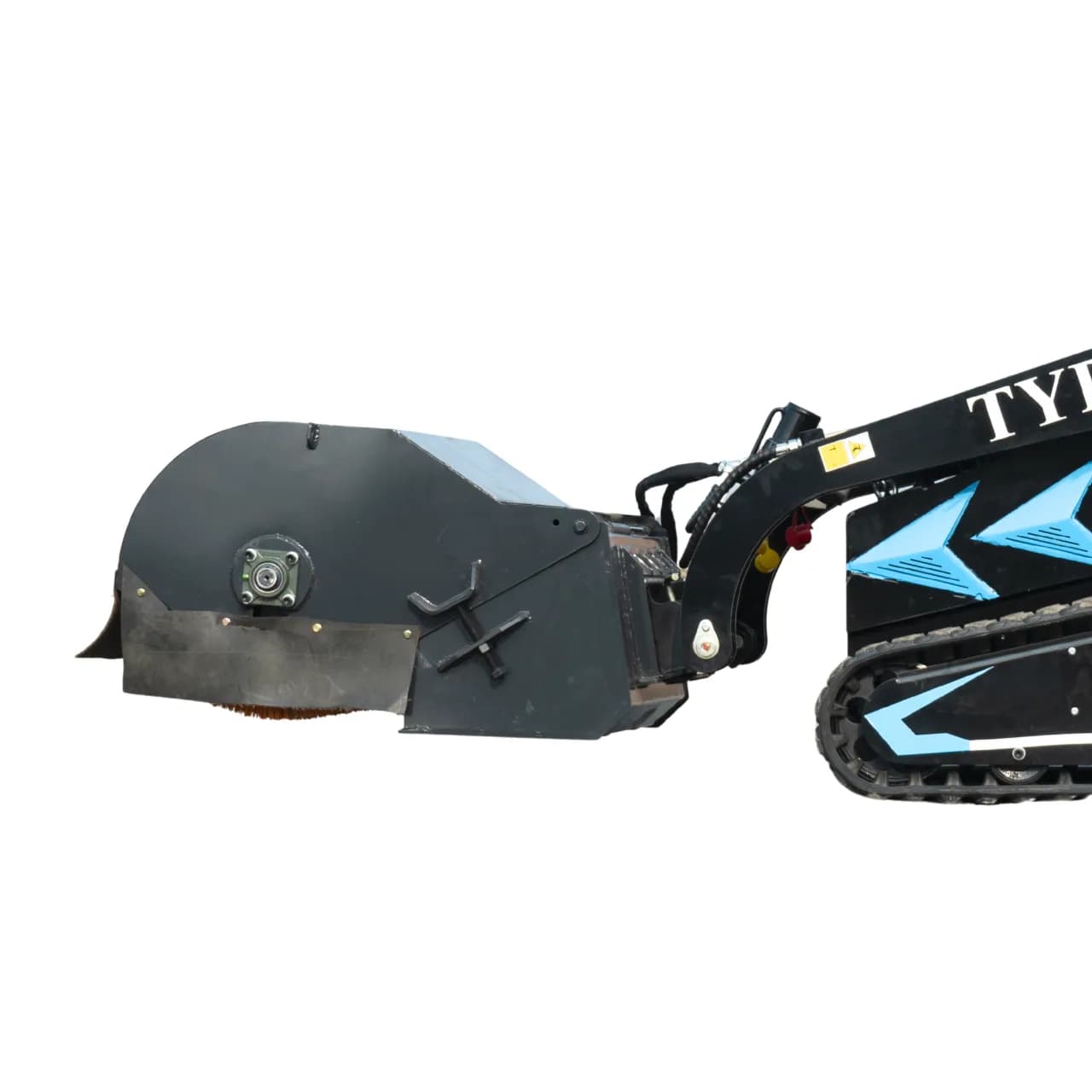

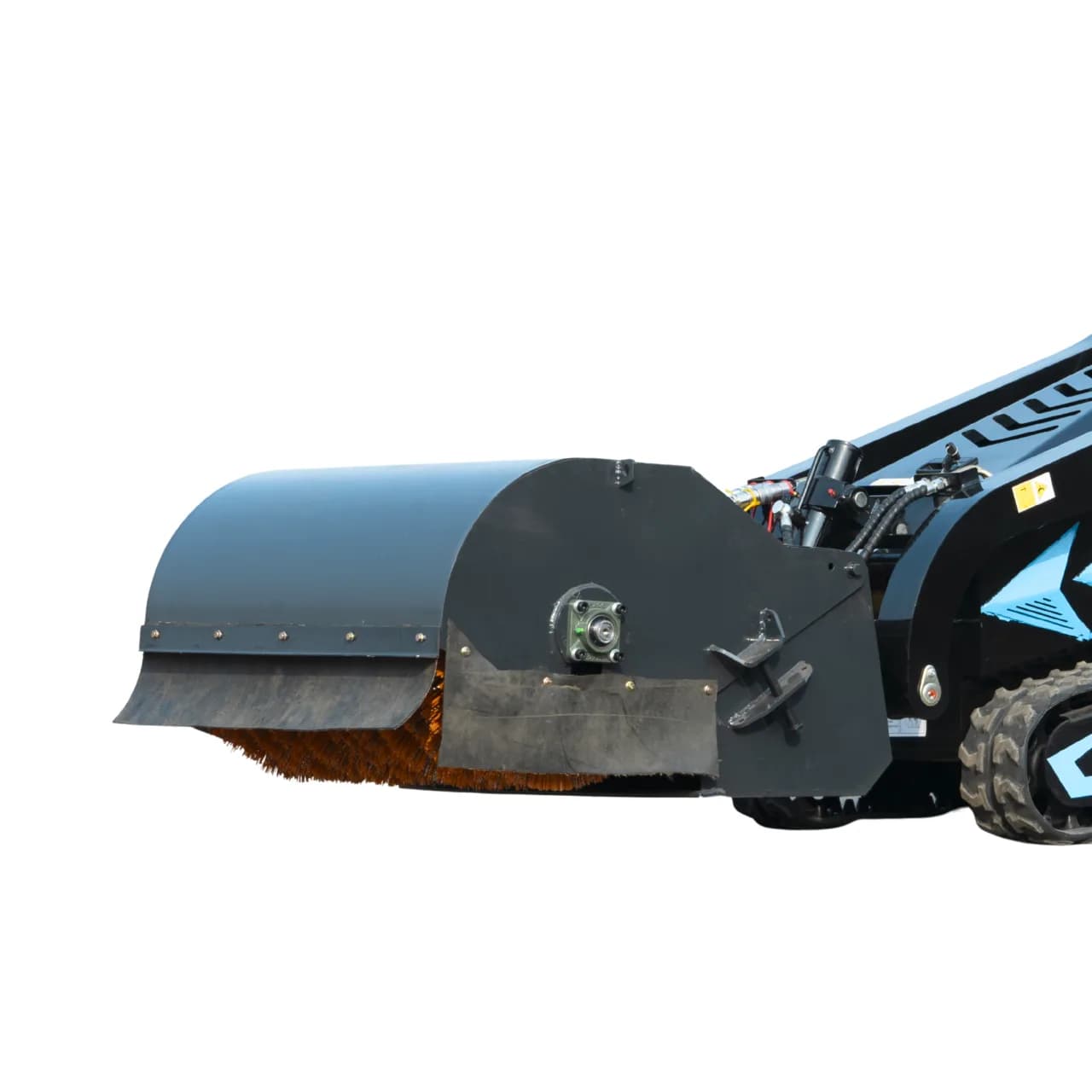

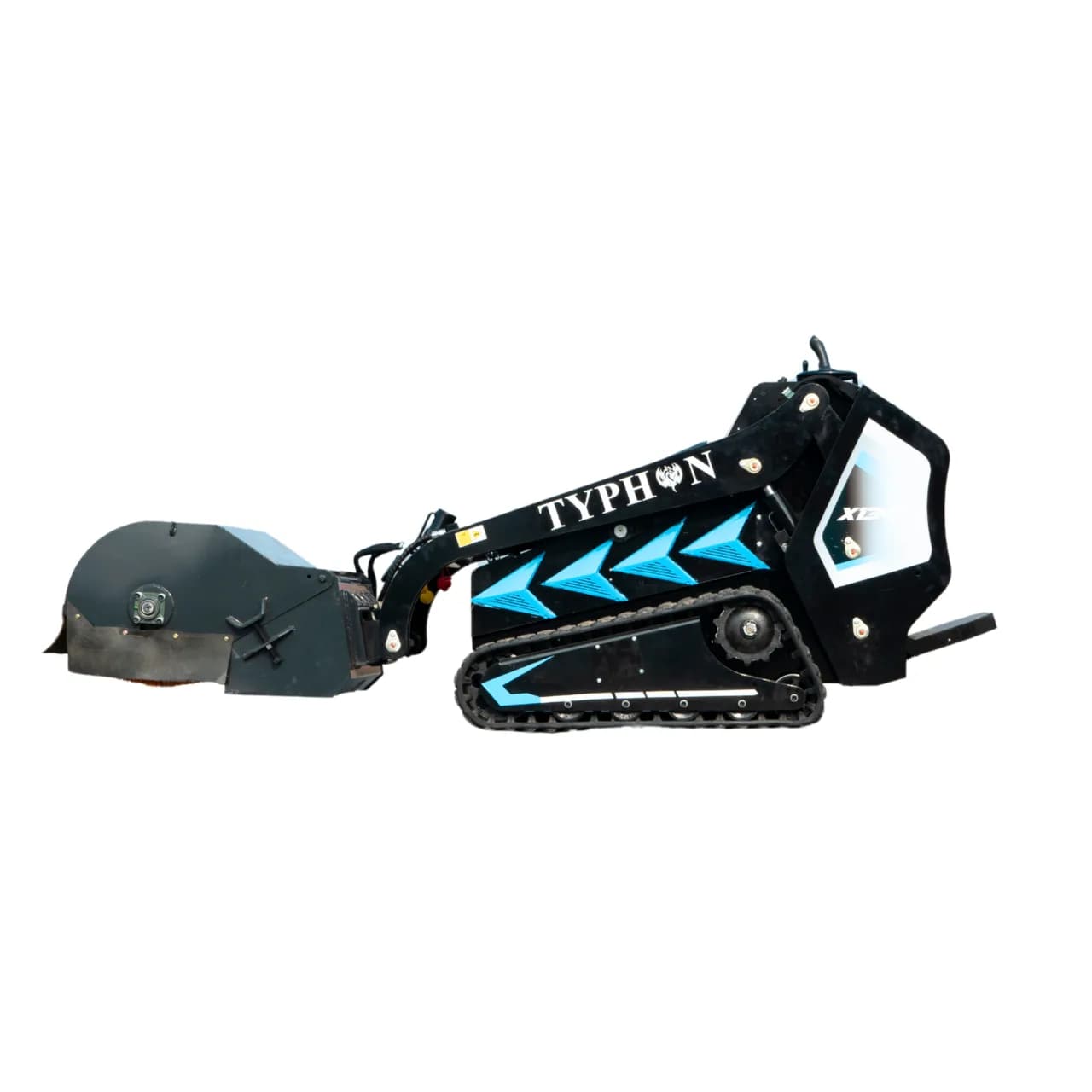

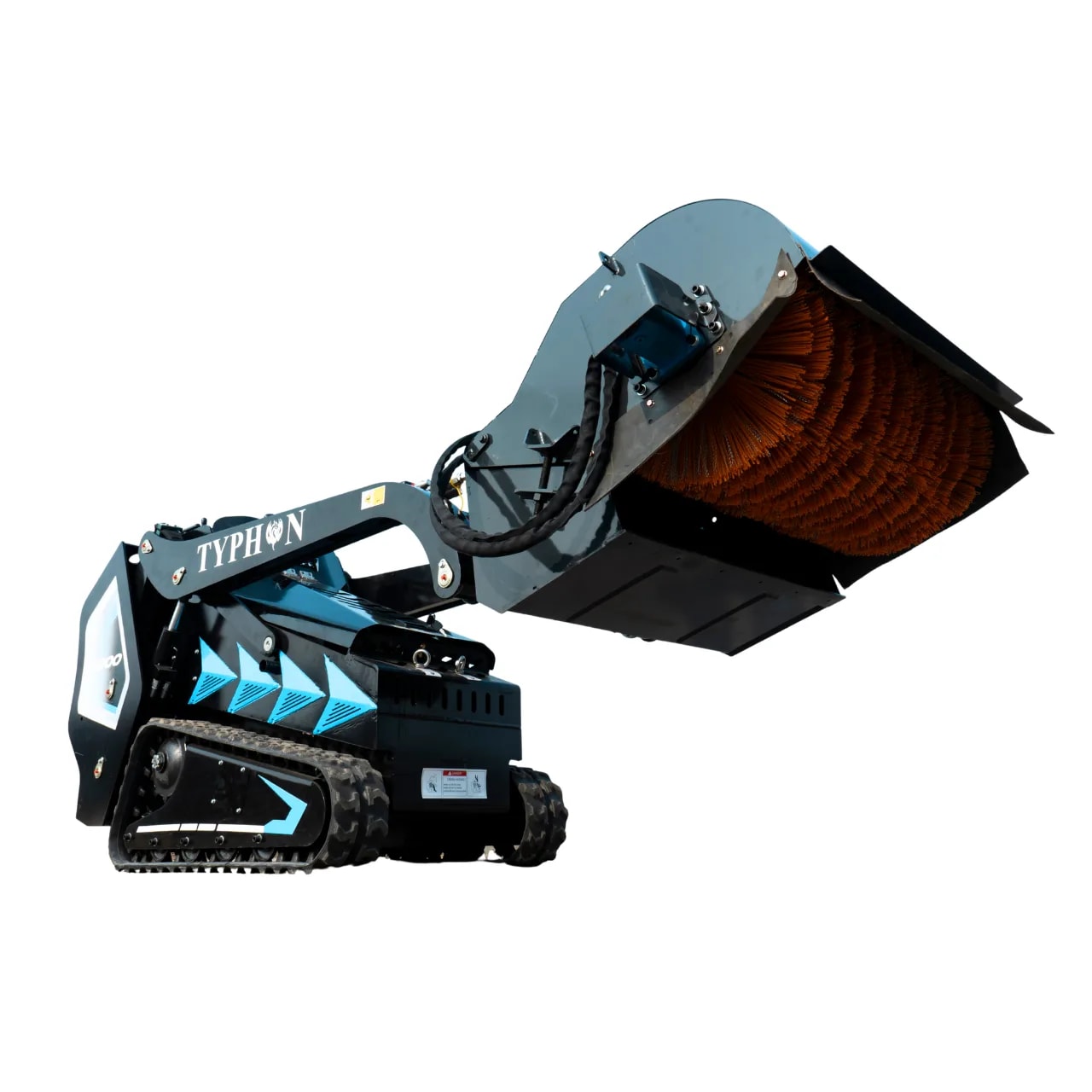

Keep your worksite clean and productive with the Hydraulic Pickup Sweeper Broom Attachment, developed especially for TYPHON STOMP X1300 and TYPHON STOMP 509.

Engineered for work-ready, professional use, this hydraulic pickup broom enables operators to sweep and collect debris in a single pass. It productively removes dirt, gravel, sand, leaves, and light snow, making it a strong choice for project sites, warehouses, farms, parking areas, and property maintenance.

The capable hydraulic-driven brush helps maintain consistent sweeping performance, while the space-efficient design delivers outstanding agility in tight or restricted areas where larger sweepers cannot operate.

Key Advantages

• Jobsite-ready pickup sweeper for mini skid steers
• Sweeps and collects debris in one pass
• Well suited to dirt, gravel, sand, and light snow removal
• Hydraulic-powered rotating brush for productive cleaning
• Space-efficient design for superior maneuverability
• Made for construction, farm, warehouse, and property maintenance applications
• Direct compatibility with STOMP X1300 & STOMP 509

Specifications

• Attachment Weight: 366 lb
• Working Width: 39.4 in
• Brush Diameter: 19.7 in
• Required Hydraulic Flow Rate: 10–6.1 GPM
• Dimensions (L × W × H): 51.2 × 47.2 × 23.6 in

This pickup sweeper broom attachment transforms your mini skid steer into a space-efficient, high-output cleanup machine saving time, reducing manual labor, and delivering professional-grade results on every job.

⚠️ Compatibility Responsibility Notice

The listed measurements and diagram apply only to the attachment’s fast-mounting plate. It is the buyer’s responsibility to confirm these dimensions match their machine’s mounting system. We cannot guarantee fitment on machines with different mount designs.
